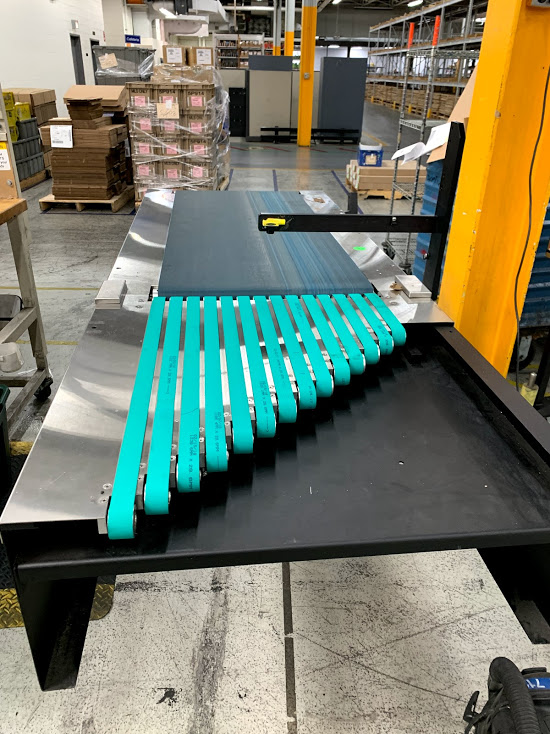

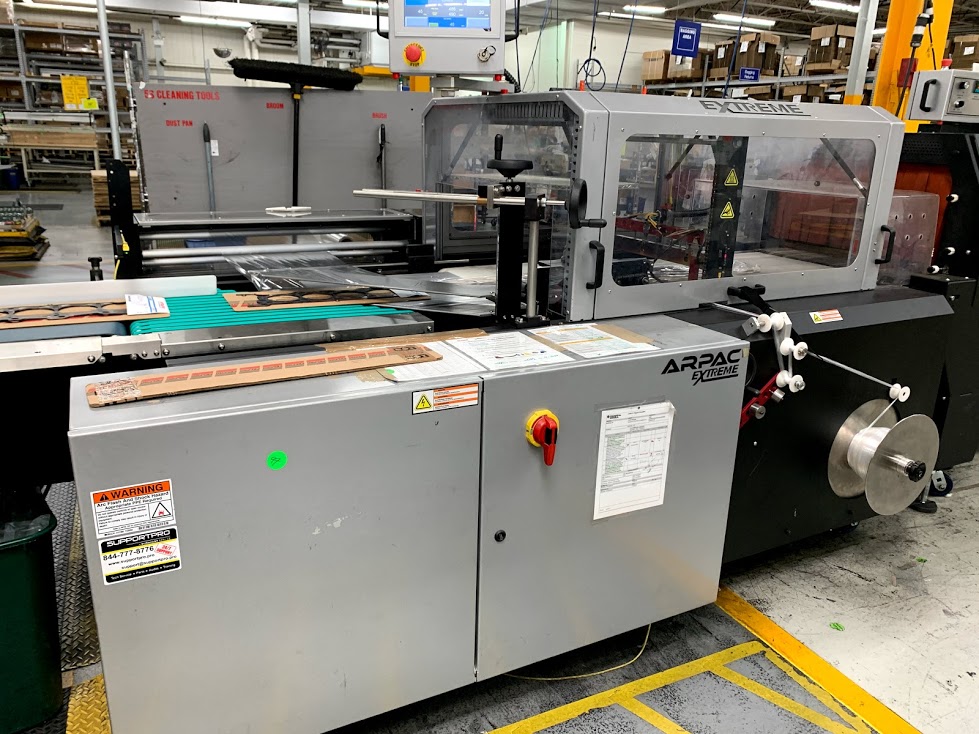

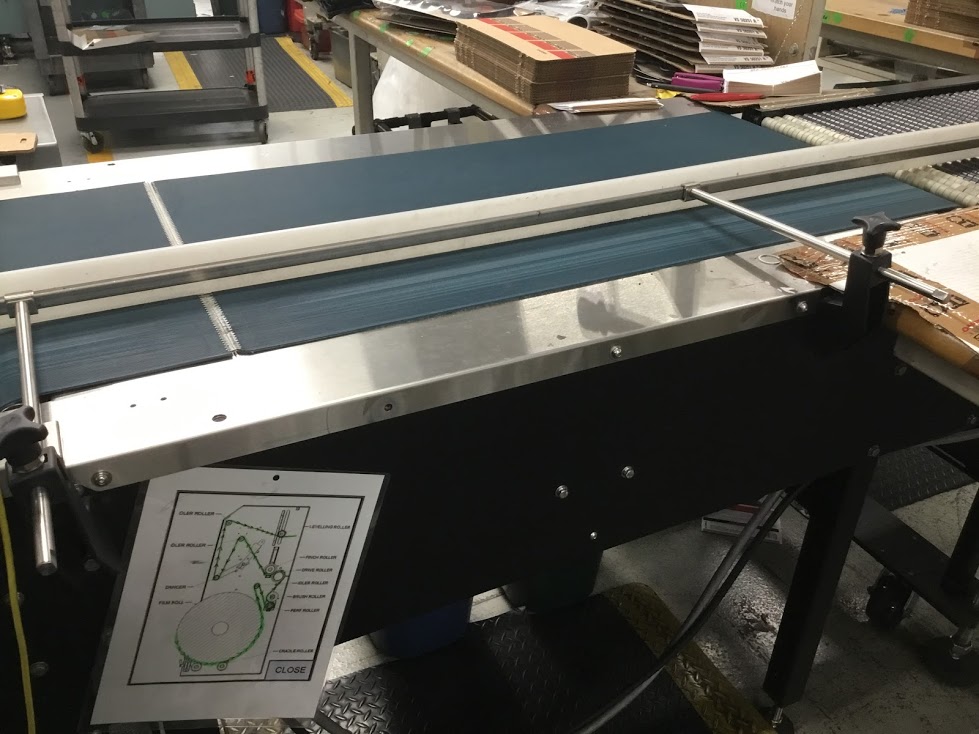

Extreme Servo Belted infeed w/ Shuttleworth Model S24BBS SN#16194

Dual Axis Servo Controlled Wrappers for Speeds to 120 PPM

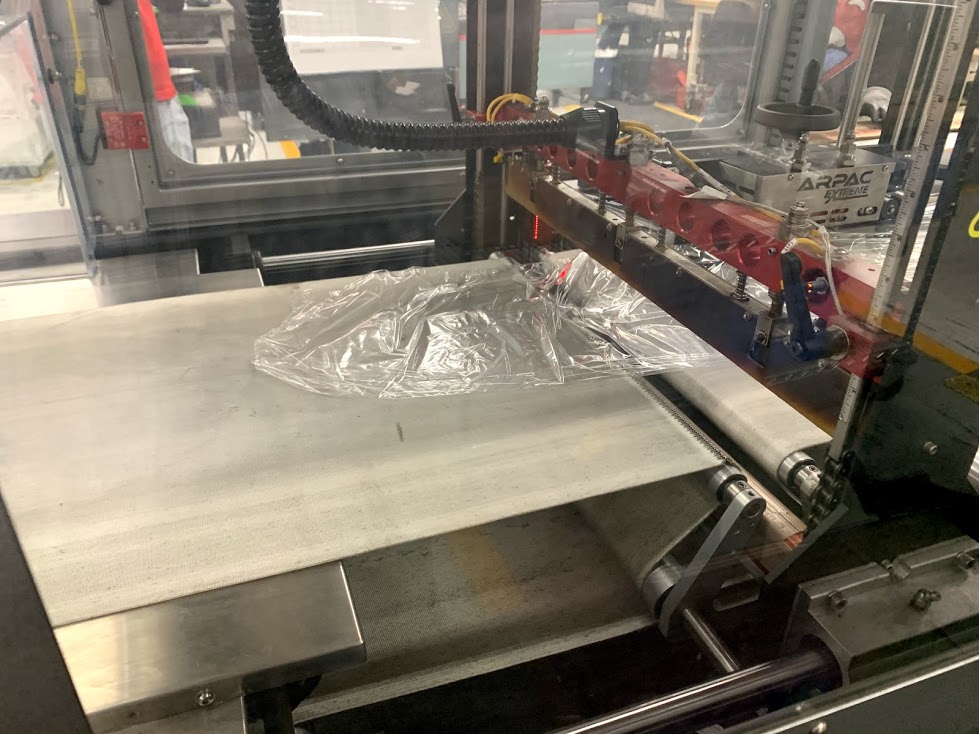

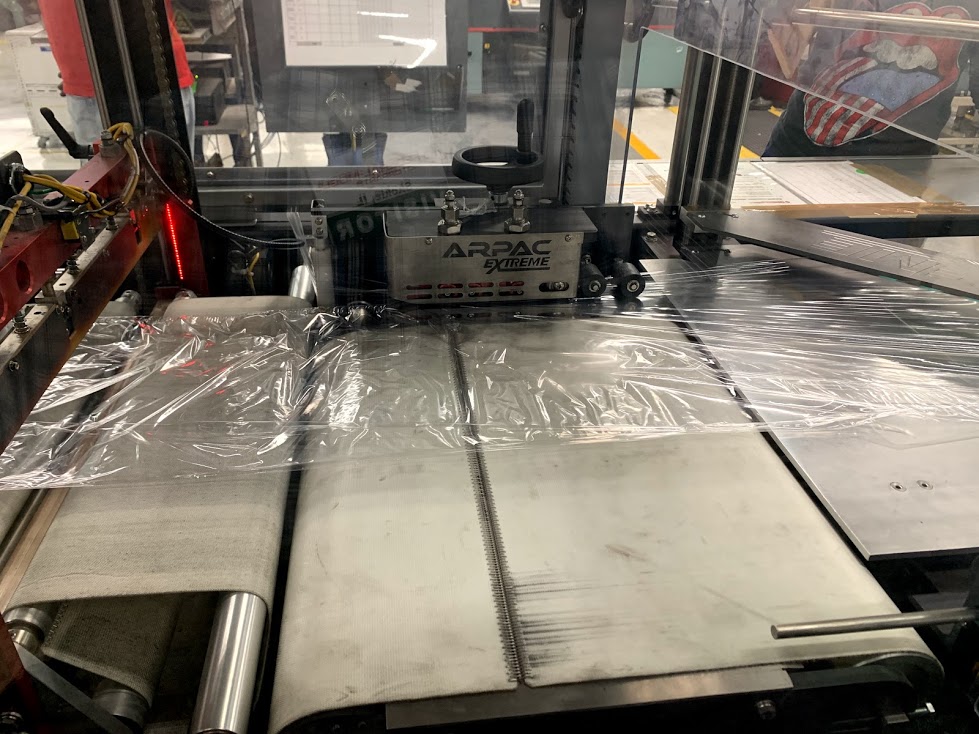

The S Series is available with a number of plug and play infeed to fit your present and future needs. This state of the art motion control platform consists of Allen-Bradley CompactLogix PLC with Ethernet communication and Color Touch Screen. Kinetics drives for Dual-Axis Servo cross seal and three 1 HP Direct Drive Vector motors drive the side seal, traveling belt and infeed conveyors. The cross seal can operate in programmable cam, package activated auto length and random length mode. The Programmable Orbit feature produces strong, quality seals with all commercial shrink films. This platform offers high speed operation, repeatability, low maintenance, reliability and extraordinary flexibility.

460 Volts, three phase, 35 Amps, 5KVA

See attached notes

Speed Up to 120 PPM Electrical Power Requirements 460 VAC, 3 Ph, 60 HZ, 35 Amps Compressed Air Requirements no air required Width (across machine)S18 – 18”
S24 – 24”
S36 – 31”
Length (flow direction)infinite Height RangeS18 – 8”
S24 – 12”
S36 – 12”

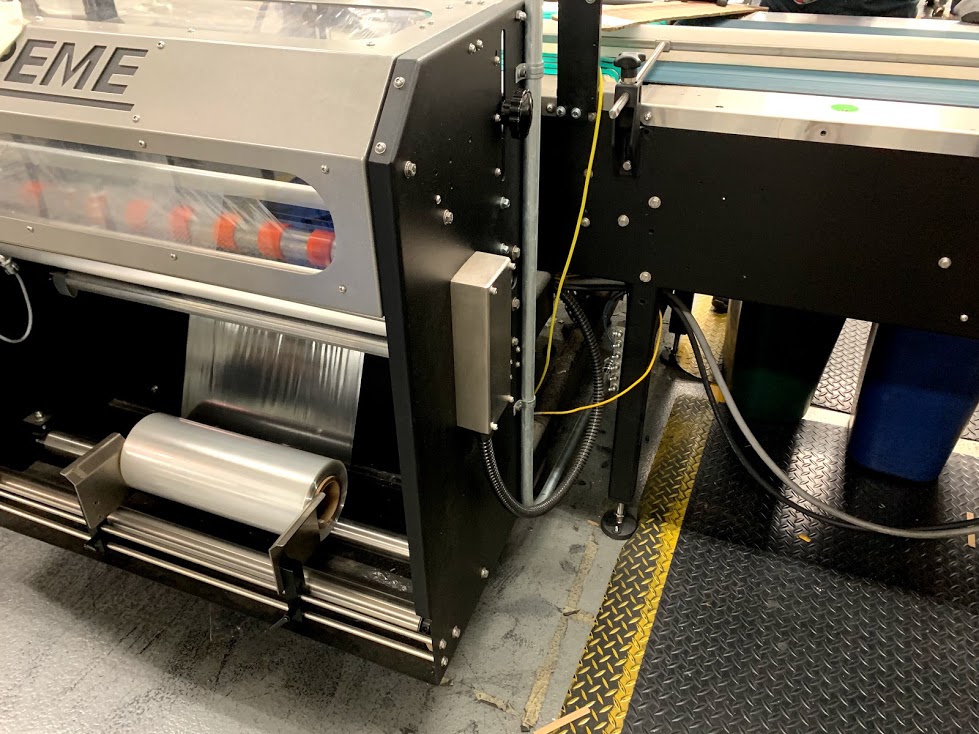

Film Roll Diameter16”Film Gauge45-90 mil Film Type Polyolefin, LDPE, PVC Other Film SpecificationsS18 film width – 25” CF
S24 film width – 30” CF
S36 film width – 36” CF
