Eastey EB25A Sleeve Tray Wrapper
Professional Series Automatic Bundler EB25A
Proven reliable over and over again, this EASTEY automatic bundler provides you with all the quality features found in much higher priced machines. EB25A is designed and built to give you all the features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC.
EASTEY’S automatic bundlers are expertly welded on ¼” cold rolled steel frames and designed to handle the day to day abuse of most bundling applications. Each bundler utilizes two rolls of single wound film mounted on the same side of the machine and upper and lower power film unwind for ease of use. See for yourself why EASTEY has been a leader in the shrink packaging industry for over 25 years.
Color PLC touchscreen features simple menus for easy operation, and can be password protected if needed.

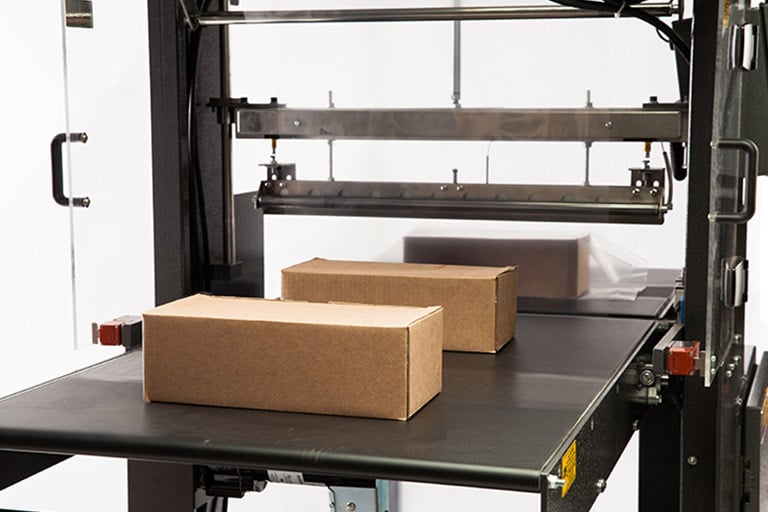

Soft start infeed and outfeed conveyors reduce product shifting.

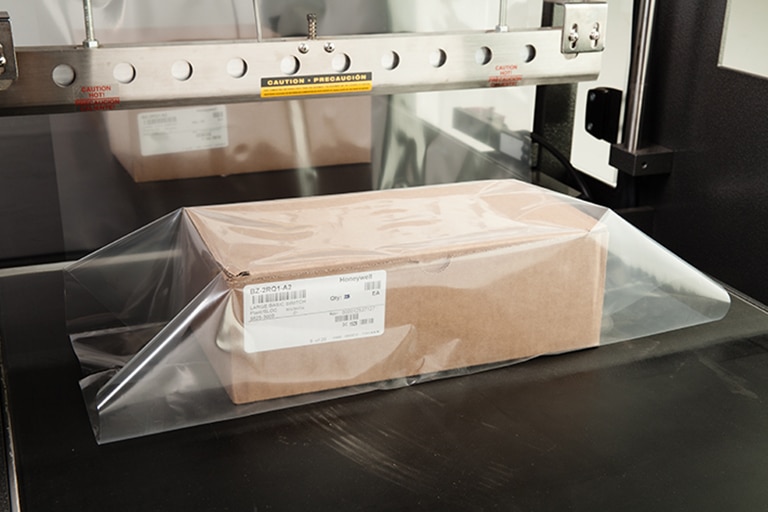

25” wide fixed lower seal bar provides a clean consistent seal and accommodates random height products.

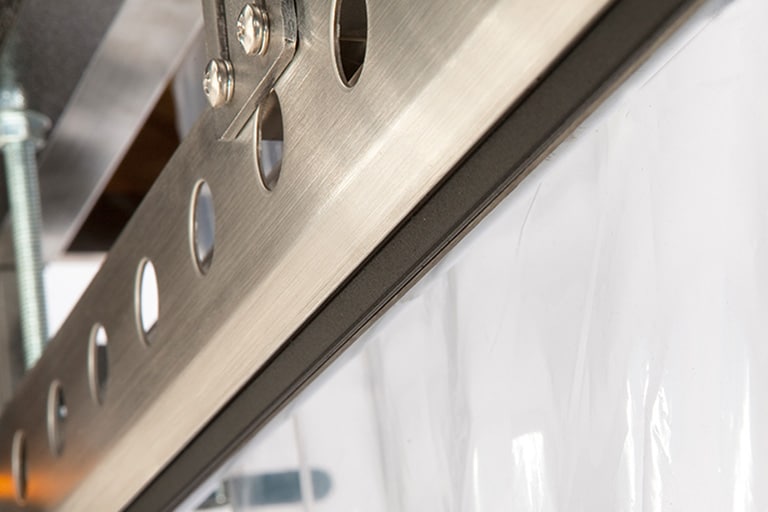

Hot knife seal bar provides positive sealing on a wide variety of films.
Designed to seal most polyolefin, polyethylene, and PVC shrink films
25” wide hot knife seal provides a consistent “bulls-eye”closure
Upper and lower powered film unwind for smooth feed of film
All-welded main frame from ¼” cold rolled steel for durability
12” product pass through height accommodates 11” tall product
Bases supplied with casters for easy transport
Reliable product transfer between infeed and exit conveyor
Soft start infeed and outfeed conveyors to reduce product shifting
Fixed lower seal bar provides a clean consistent seal and accommodates random height products
Automatic seal system with pneumatic hold for consistent pressure
Self tracking conveyor belt and product indexing
34.75” conveyor height
Siemens PLC touchscreen with full color HMI
Flexibility for fully automatic or single product operation
Small footprint – 61.5”L x 41.8”W x 71.3”H
Durable custom two-part epoxy finish resists scratching
25” max film width
14” max film OD
220V standard; optional 480V
Requires 60 psi; 3.5 cfm
Easy to use design
