AFM SHRINK BAND APPLICATOR MODEL CH100

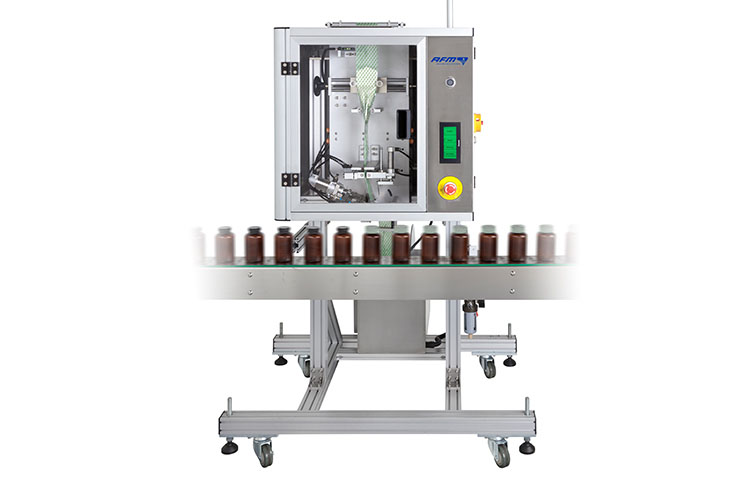

The CH-100 Tamper Evident Band Applicator

The CH -100 Tamper Evident Band applicator from American Film & Machinery is an economy level shrink band applicator designed to apply tamper evident bands on a variety of containers. The CH-100 is designed for low to moderate production rates and is a perfect solution for industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, chemical, and other manufactured goods.

Industrial Design

The CH-100 is a fast and efficient butterfly mandrel style tamper band applicator engineered to meet the demand of your workflow. Designed for 24 hour operation, CH-100’s simple and low maintenance design allows for quick film change and maximum uptime. CH-100’s compact housing is constructed from 304 grade stainless steel and anodized aluminum to provide strength and reduce vibration while offering quiet operation. Product runs are programmed with the user-friendly touch-screen control interface, making setup and operation fast and easy.

Around The Clock Operation

CH-100 Tamper Band Applicators are designed with stepper motor driven, single film unwind with tension control, cutter assembly, and pneumatic cylinder to provide accurate and consistent tamper band application. CH-100 has been engineered to handle round bottles made of plastic, glass, or metal at speeds up to 120CPM. The single blade guillotine cutting mechanism provides extremely smooth, even cutting of PVC/PETG film 50 to 70 microns in thickness.



CH-100’s Butterfly Mandrel is an ideal solution for accurate placement of shrink and tamper bands on a variety of containers.

The Single Unwind System with tension control ensures proper film alignment for accurate feeding and cutting.



Easy-to-use hand crank allows for ideal height adjustment on virtually any conveyor.

Product runs are programmed with the user-friendly touchscreen control interface.



  • STANDARD COMPONENTS OF THE CH-100Stepper motor driven
  • Butterfly mandrel
  • Pneumatic cutting blade
  • Photo eye for registered cutting
  • Single unwind system and tension control


  • OPTIONAL FEATURES & COMPONENTS FOR THE CH-100
  • Label tamp down device
  • Timing screw or wheel


  • TECHNICAL SPECIFICATIONS OF THE CH-100Power: 1 Phase 220V
  • Film Thickness: 0.05mm – 0.07mm
  • Film Lay Flat: 40mm – 150mm
  • Cut Length: 20mm – 50mm
  • Machine Dimensions: 1000mm (W) x 1130mm (L) x 1620-2000mm (H) 39.4” (W) x 44.5” (L) x 63.8” – 78.7.6” (H)
  • Speed: 20 – 120CPM; timing screw required for speeds 75 – 120 CPM
