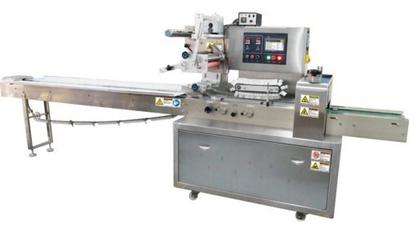

PM-C350HL Series Horizontal Flow Wrapper

The Model C350-HL is a flow wrapper for candy, biscuits, bread, hardware, and other solid products in small packaging with enhanced height and length. It can make a bag up to H55 x L330mm.

The loading table allows the operators to place products on the in-feed chain. The attached pushers on the chain will move the product along the horizontal track and push the product into the wrapping tube, the tube is then seal and cut by the transverse seal system which contains a knife with anvil on the crimp jaws.

• 5.7" colour touch-screen HMI

• Machine functions controlled by "Panasonic" PLC

• Auto diagnosis with on-screen error display for easy troubleshooting

• Auto synchronizing the wrapping material and transverse cut

• Air expelling device

• Bag length controlled by encoder or photoelectric sensor

• Constant heat sealing system

• Film advancing rollers inverter driven

• Film reel clamping for fixation

• Film reel holder self-centering by hand-wheel

• Film reel power unwind mechanism

• Forming inlet adjustable for various width

• P.I.D. digital temperature controller, heats up to 150°C in less than 10 minutes

• Photoelectric sensor by "Omron"

• Rotary crimp single jaw transverse seal system

• Rotary crimp single jaw inverter driven


Bag origin: Film reel

Bag width: 50 -160 mm | 2 - 6¼ inch

Bag length: 150 - 330mm | 5¾ - 12¾ inch

Bag height: <60 mm | <2¼ inch

Reel width: 130 - 350mm | 5 - 13¾ inch

Cutting style: Serrated

Machine speed: 40 - 230 bpm

Machine weight (kg): 600

Machine dimensions: L4020 x W770 x H1450 mm

Power (kW): 2.8

Voltage: 220VAC, 50Hz, 1-Phase
