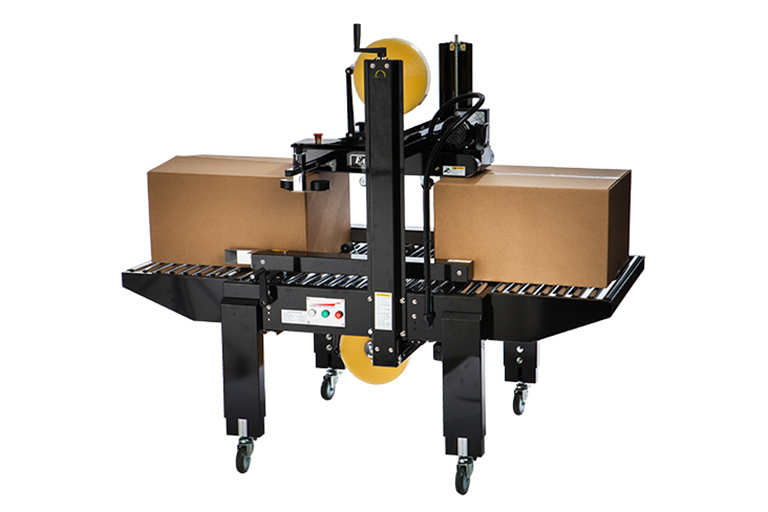

SB/TB-2 Side Belt & Top Belt Case Taper

Eastey Unifrom Case Taper Sealer Sb Tb 2 Eastey Unifrom Case Taper Sealer Sb 2hd Drive Belts Eastey Unifrom Case Taper Sealer Sb Tb 2 Drive Belts Eastey Unifrom Case Taper Sealer Sb Tb 2 Oversized Cases Eastey Unifrom Case Taper Sealer Sb Tb 2 Hand Crank

SB/TB-2 Side Belt & Top Belt Case Taper

Eastey’s SB/TB Case Taper offers the quality that you have come to rely on from Eastey. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.

SB/TB offers fast and easy case changes and flexibility for boxes 4.75” in length and greater. Adjustments can be made on the fly with easy hand tighten knobs and cranks. SB/TB utilizes Easy-Taper Quick-Load top and bottom tape cartridges and will seal boxes as large as 27.5” wide and as tall as 27.5”, offering the user more options for their case taping operation.

Four drive belts work in unison to effectively move your cases through for a strong and consistent seal. SB/TB utilizes a dual mast with twin lead screws for greater tape head stability, and an adjustable side belt drive to center each case. The unit also features top compression rollers to stabilize the case and push the top flaps together, making it a great solution for over-filled and over-sized cases.

Designed for over-sized, heavyweight cases that are too large for most case sealing equipment.

Four belts work in unison to efficiently move cases through the taper for a strong and consistent seal.

Easy-to-use hand crank allows for quick product height adjustments.

Top and bottom tapeheads are identical and can be removed instantly without tools. Choose from two options.

Minimum Box Size – 4.75? (Length) 7? (Width) 4.7? (Depth)

Maximum Box Size – infinite (Length) 27.5? (Width) 27.5? (Depth)


Plug-in and go operation

Fast and easy box size changes

Industrial strength side belts

Interchangeable top and bottom tape cartridges

Emergency stop button

Adjustable leg extensions

Casters for transportation within plant

Front and rear pack tables to allow for case packing

Top squeezers push top flaps together for accurate case sealing

Powder coated 12 gauge steel

Low maintenance, no air required


Sealer Type – Side and top belt case sealer

Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability

Belt Speed – 75 feet/per minute

Tape Speed – 30 cases/per minute, depending on box size and operator efficiency

Height Adjustment – Standard adjustable legs for 26.8” to 34.6” conveyor heights

Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges

Drive Motor – Three (3) 1/4 HP drive motors

Electrical Requirements – 110 VAC, 60Hz, 4.0A

Agency Approvals – CE Certification


Sealer Type – Side and top belt case sealer

Machinery Makeup – Industrial strength 12 gauge steel, powdered coated for durability

Belt Speed – 75 feet/per minute

Tape Speed – 30 cases/per minute, depending on box size and operator efficiency

Height Adjustment – Standard adjustable legs for 26.8” to 34.6” conveyor heights

Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges

Drive Motor – Three (3) 1/4 HP drive motors

Electrical Requirements – 110 VAC, 60Hz, 4.0A

Agency Approvals – CE Certification


3” Tape Head – Accepts 3” wide tape rolls
