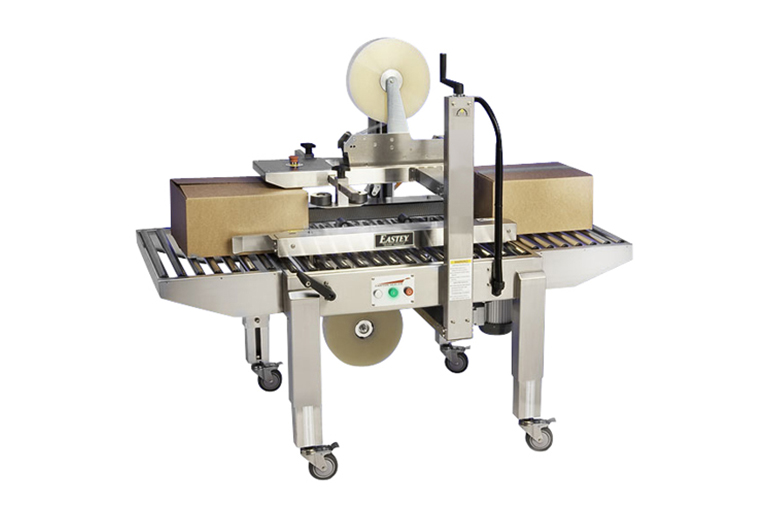

SB-2EX-SS Stainless Steel Carton Taper

Eastey Unifrom Case Taper Sealer Sb 2ex Ss Stainless Steel Eastey Unifrom Case Taper Sealer Sb 2ex Roller Beds 1 Eastey Unifrom Case Taper Sealer Sb 2ex Adjustable Side Rails 1 Eastey Unifrom Case Taper Sealer Sb 2ex Tapehead 2

S2EX-SS Stainless Steel Side Belt Case Taper

Eastey’s SB-2EX-SS Case Taper offers the quality that you have come to rely on from Eastey. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.

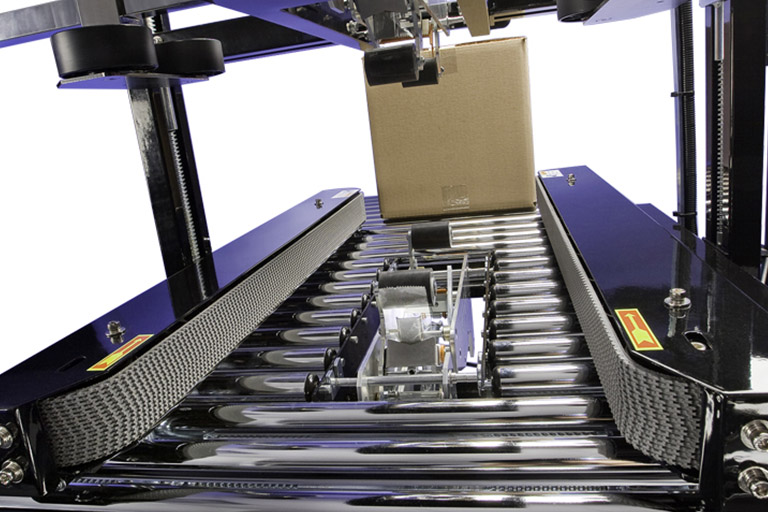

The SB-2EX-SS’s side belts are great for light or heavy weight, narrow or small boxes. It is ideal for void-fill cases where the packaged product does not support the box.

Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX-SS a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge stainless steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX-SS is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.


Top and bottom tape heads are interchangeable and are designed for easy threading.

SIZES:


Minimum Box Size – 5? (Length) 4.5? (Width) 4.5? (Depth)

Maximum Box Size – infinite (Length) 19.5? (Width) 19.5? (Depth)


FEATURES:


Plug-in and go operation

Fast and easy box size changes

Industrial strength side belts

Interchangeable top and bottom tape cartridges

Emergency stop button

Adjustable leg extensions

Casters for transportation within plant

Front and rear pack tables to allow for case packing

Top squeezers push top flaps together for accurate case sealing


12 gauge stainless steel

Low maintenance, no air required


SPECS:

Sealer Type – Side belt, top and bottom case sealer

Machinery Makeup – Industrial strength 12 gauge steel

Belt Speed – 75 feet/per minute

Tape Speed – 30 cases/per minute, depending on box size and operator efficiency

Height Adjustment – Standard adjustable legs for 18.1” to 32.3” conveyor heights

Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape

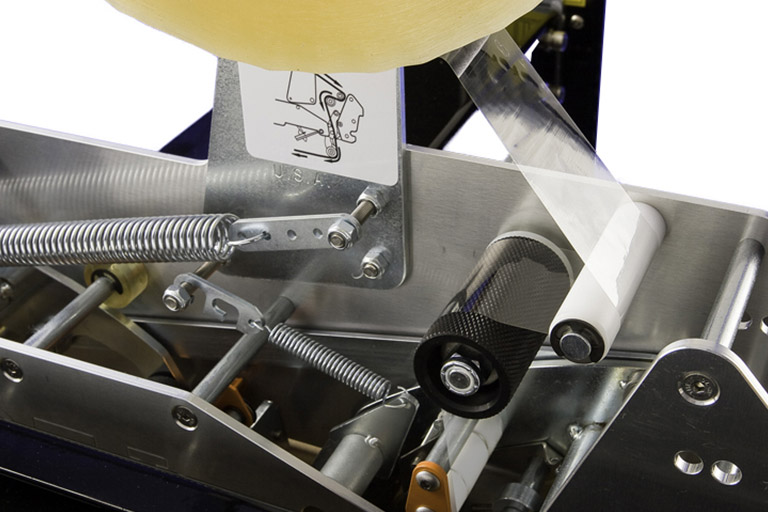

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges

Drive Motor – Two (2) 1/4 HP drive motors

Electrical Requirements – 110 VAC, 60Hz, 4.0A

Agency Approvals – CE Certification

3” Tape Head – Accepts 3” wide tape rolls
