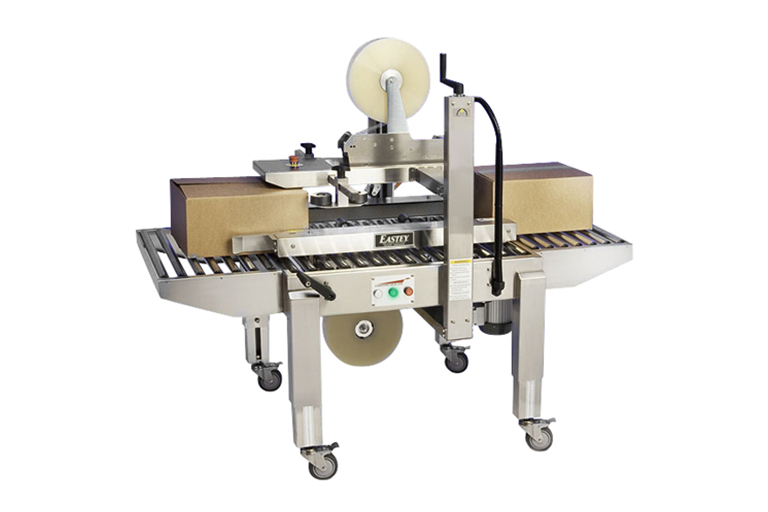

SB-2EX-SS Stainless Steel Carton Taper
S2EX-SS Stainless Steel Side Belt Case Taper
Eastey’s SB-2EX-SS Case Taper offers the quality that you have come to rely on from Eastey. The system’s unique and simple design has proven to be one of the most reliable case tapers on the market today, keeping production and maintenance efforts to a minimum and providing fast and efficient alternatives to hand taping.
The SB-2EX-SS’s side belts are great for light or heavy weight, narrow or small boxes. It is ideal for void-fill cases where the packaged product does not support the box.
Dual 1/4 hp drive motors, aggressive industrial strength drive belts, and roller tables make SB-2EX-SS a workhorse that will stand up to your toughest challenges. Each case taping machine is made from 12 gauge stainless steel that will withstand even the most rugged applications. A powder coated exterior protects the machine from abusive conditions and guarantees years of use. Best of all, the SB-2EX-SS is CE certified, so users can be confident it will consistently provide reliable, high quality case sealing.
Top and bottom tape heads are interchangeable and are designed for easy threading.
Minimum Box Size – 5? (Length) 4.5? (Width) 4.5? (Depth)
Maximum Box Size – infinite (Length) 19.5? (Width) 19.5? (Depth)
Plug-in and go operation

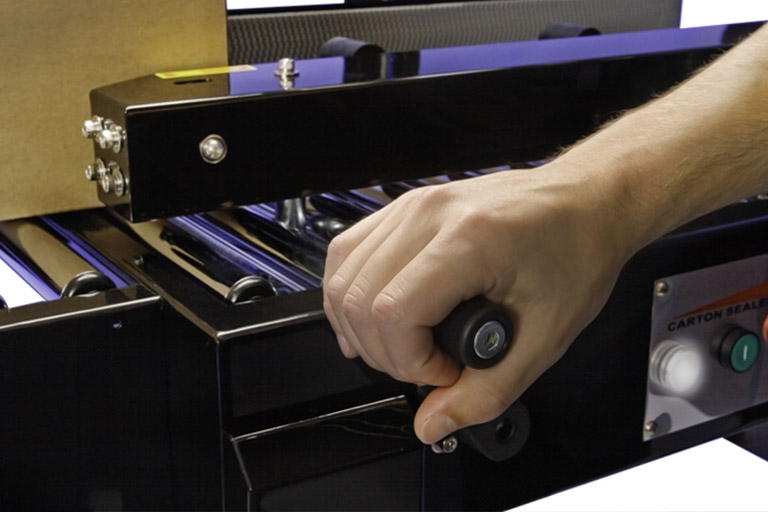

Fast and easy box size changes

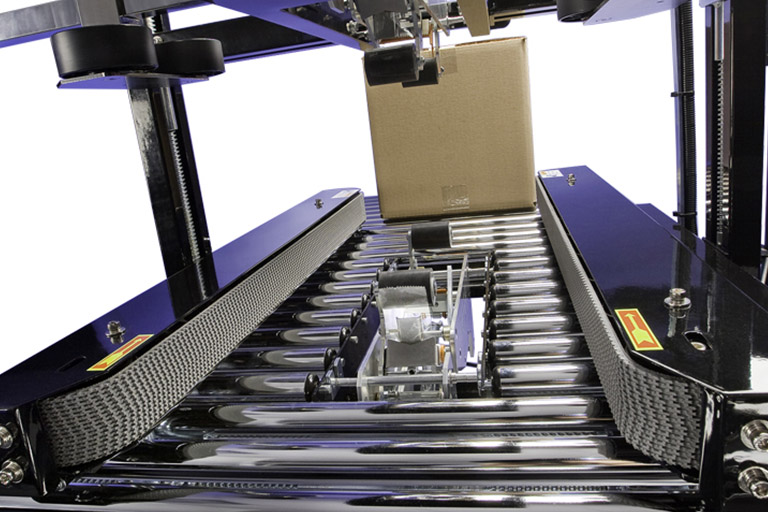

Industrial strength side belts
Interchangeable top and bottom tape cartridges
Emergency stop button
Adjustable leg extensions
Casters for transportation within plant
Front and rear pack tables to allow for case packing
Top squeezers push top flaps together for accurate case sealing
12 gauge stainless steel
Low maintenance, no air required
Sealer Type – Side belt, top and bottom case sealer
Machinery Makeup – Industrial strength 12 gauge steel
Belt Speed – 75 feet/per minute
Tape Speed – 30 cases/per minute, depending on box size and operator efficiency
Height Adjustment – Standard adjustable legs for 18.1” to 32.3” conveyor heights
Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape

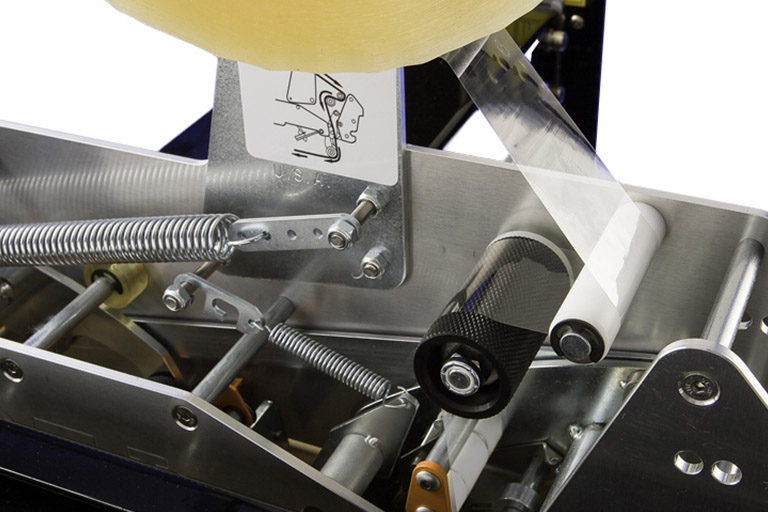

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges
Drive Motor – Two (2) 1/4 HP drive motors
Electrical Requirements – 110 VAC, 60Hz, 4.0A
Agency Approvals – CE Certification
3” Tape Head – Accepts 3” wide tape rolls
