APMK VCBSDM-1/8 TX -6x5

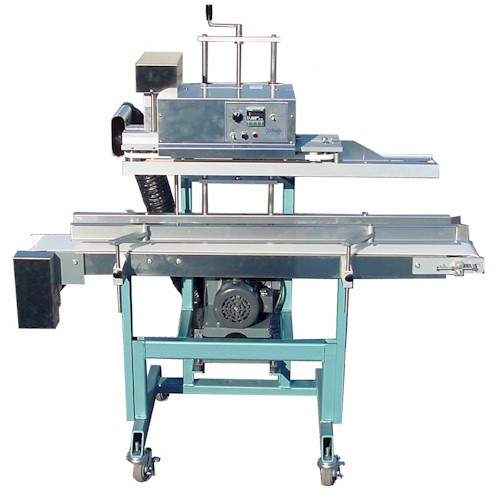

USDA approved Vertical Rotary Band Sealing System with Bag Top Trimmer and Lower Carry Synchronized Conveyor.

 Features:

  • Supplied with Lower Carry Belts and interfaced Variable Speed Conveyor, 6” wide x 5’ long with fully adjustable stainless steel Guide Rails. Adjustable height Sealing Assembly Floor Stand with crank handle and Vacuum System for trim scrap removal is standard.
  • This continuous band sealer will seal and trim Tyvek®, Foil, Polyethylene, Polypropylene, Nylon, Coextrusion, Polylaminates and poly-coated paper materials.
  • Smokeless and odorless sealing and trimming.
  • Variable speeds up to 720 inches per minute (60 fpm) with new dual motor 3 phase inverter drive package.
  • Quality seals of 1/8”, 1/4” or 3/8” wide are achieved through the use of special heavy duty wear-resistant laminated Teflon bands.
  • Digital Temperature Control with PID Auto tune maintains consistent heat and assures quality hermetic seals.
  • Unit is designed with 5” long heating zone and 5” long cooling zone for greater flexibility in product sealing of difficult materials with temperatures up to 450 degrees Fahrenheit.
  • Hard Chrome plated sealing bars followed by Nickel plated cooling bars allow for maximum wear resistance.
  • Electrical 110 VAC 10 amps/ 60 Cycle. No compressed air required. Optional Casters (shown) for easy positioning are available upon request.
  • Optional Infeed Conveyor support heavy or bulky packages for final seal and trim is available upon request.
  • System available mounted on 4’ high adjustable floor stand, may complement your existing conveying equipment by positioning the Sealing System over it and adjusting the variable speed drive to match. Model VBS-1/8TX is available upon request.
  • Custom configurations are available, inquire with our Sales Department with your application.
