APM DS-IMP-1/4-16 Drop Sealer

Dsssimp516 16 Large 1

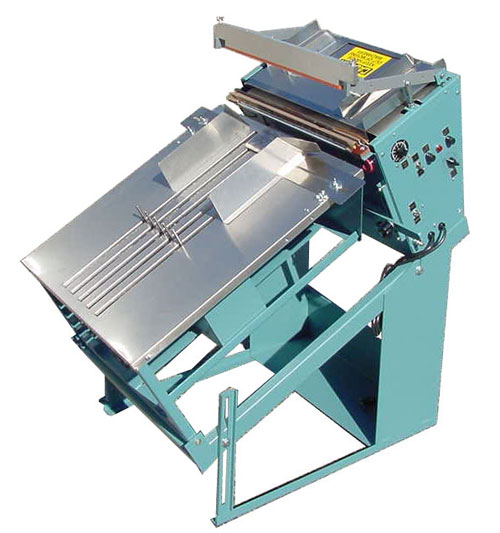

Drop sealer model DS--IMP-1/4-16 yields a 1/8” or 1/4” wide seal on bags up to 15.5" wide and products up to 22" long. Polyethylene bags up to 6.0 mil thick can be sealed. All other heat sealable bags can be used on this versatile impulse sealer. For trimming models see  DS-SS-16 or  DS-SS-IMP-5/16-16.

Drop Sealers can be combined with our Speedy Bag Packagers to make a complete bag and seal system.

  • Features: Materials: Polyethylene, Polypropylene, Laminates, foil, etc.
  • Can be operated in automatic mode using product micro switch or manual mode using the foot pedal included.
  • Complete with automatic scrap removal and net scrap accumulator
  • Welded Heavy Duty Steel Powder Coated Chassis construction
  • Stainless steel contact surfaces and adjustable product guides
  • Up to 25 ppm can be achieved on some products
  • Quick and accurate length and width adjustments takes seconds
  • Compressed air required, 110V, 1 phase, 60 cycle (220V available)
  • Designed to operate with all Speedy Bag Packager models
  • Safeguard device available
  • Adjustable pneumatic compression plate option available to remove excess air from bagged product prior to sealing



  • Features: Materials: Polyethylene, Polypropylene, Laminates, foil, etc.
  • Can be operated in automatic mode using product micro switch or manual mode using the foot pedal included.
  • Complete with automatic scrap removal and net scrap accumulator
  • Welded Heavy Duty Steel Powder Coated Chassis construction
  • Stainless steel contact surfaces and adjustable product guides
  • Up to 25 ppm can be achieved on some products
  • Quick and accurate length and width adjustments takes seconds
  • Compressed air required, 110V, 1 phase, 60 cycle (220V available)
  • Designed to operate with all Speedy Bag Packager models
  • Safeguard device available
  • Adjustable pneumatic compression plate option available to remove excess air from bagged product prior to sealing
