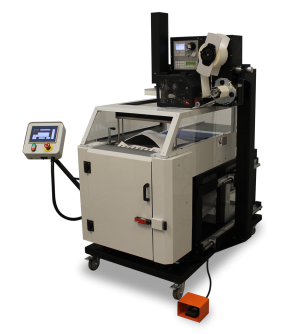

Clamco Magnum Horizontal Mail Order Bagger

Works with Pre-Made Poly Mailers and Poly Tubing

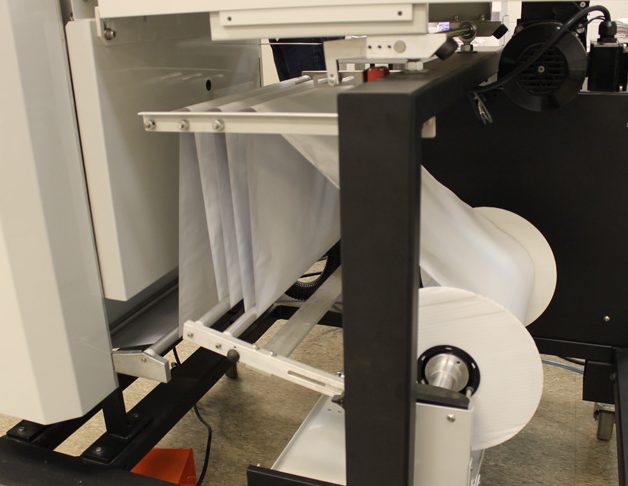

The Rollbag Magnum Horizontal Mail Order Fulfillment automatic bagger is an elite poly mailer packaging system. This horizontal automatic bagger works with coex poly tubing as well as pre-made coex poly mailers on a roll. The benefits of poly tubing include lower material cost and the ability to change bag length on the fly. By right-sizing the bag to the product being packaged, you reduce your material cost as well as your shipping costs. You no longer have to ship oversized poly bags that are impacted by dimensional weight pricing.

Simplify Packaging by Applying the Label Directly on the Bag

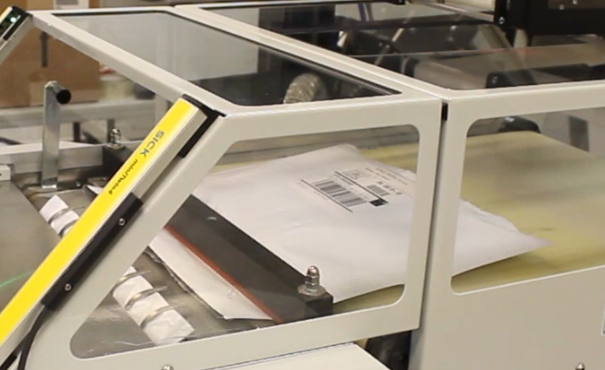

The Magnum Horizontal Mail Order Fulfillment bagger is equipped with a label printer applicator with first bag out printing to create a fully integrated mail order fulfillment bag packaging solution. The direct thermal printer eliminates the need for printer ribbon. Furthermore, this automatic bagger for poly mailer packaging can be equipped with a dual sided label printer applicator to include the shipping information and packing slip on a single label. This feature simplifies the packaging process, as the operator no longer has to wait for and place the packing slip directly inside the poly mailer bag.

An Ergonomic Packaging System with a Small Footprint

By loading the product horizontally, this poly mailer packaging system allows your operators to package products in a more ergonomic reach zone than with vertical loading systems. Furthermore, by looking straight ahead as opposed to looking down during product loading, operators have better neck posture and improved field of view. Since this mail order packaging system has a horizontal load configuration with integrated conveyor, the footprint is significantly smaller than vertical load systems. This is especially true when factoring in take-away conveyors that vertical systems require for conveying the bag to the next step of the fulfillment process.

A Complete Mail Order Packaging System for Poly Mailers

The Magnum Horizontal Order Fulfillment bagger is made in the USA and includes a 1 year limited warranty. This warranty is extendable up to 5 years when exclusively using Rollbag brand coex poly mailer bags on a roll or poly tubing, as well as labels! This mailing system for poly mailer packaging is ideal for e-commerce, order fulfillment and distribution facilities that require the highest level of performance in their poly mailer packaging operation.

Printing Options

  • TwinPrint dual sided label printer applicator to include the shipping information and packing slip on a single label
  • Print Registration – for use with pre-printed poly tubing that uses registered print

Product Loading Options

  • Easy Load Bag Opener – squares the bag open for loading as well as pulls the seal flat prior to sealing
  • 6.25? Seal Bar Pass Through – 2.25? wider pass through than the standard 4?

Sealing Options

  • 15? Bag Width – for sealing bags up to 15? wide
  • Articulating guide arms – assist in product loading
  • Longer exit conveyor – extend the take-away conveyor from the standard 2? length
  • Extended loading area – extend the loading area to a custom length

Safety Options

  • Audible Warning System – when the PLC detects an error an audible alarms sounds and the machine stops
  • Dual Palm Buttons – two buttons that must be pressed simultaneously in order for the machine to cycle
  • Light Curtain – prevents the operation of the bagger when the optical detection field is obstructed

Other Options

  • Adjustable Hole Punch – pneumatic punch that puts a small hole in the bag, allowing for excess air to escape
  • End of Roll Detector – used to monitor when bags are in position and when the end of a roll has been reached
  • Bag Open Sensor – assures that when a bag is in the load position it is open and ready to accept product

Operating Benefits

  • Works with poly tubing as well as pre-made poly mailers on a roll for maximum flexibility
  • Horizontal load configuration for improved packing ergonomics
  • Lower material and shipping costs when using poly tubing by making bags inline before they are filled and sealed

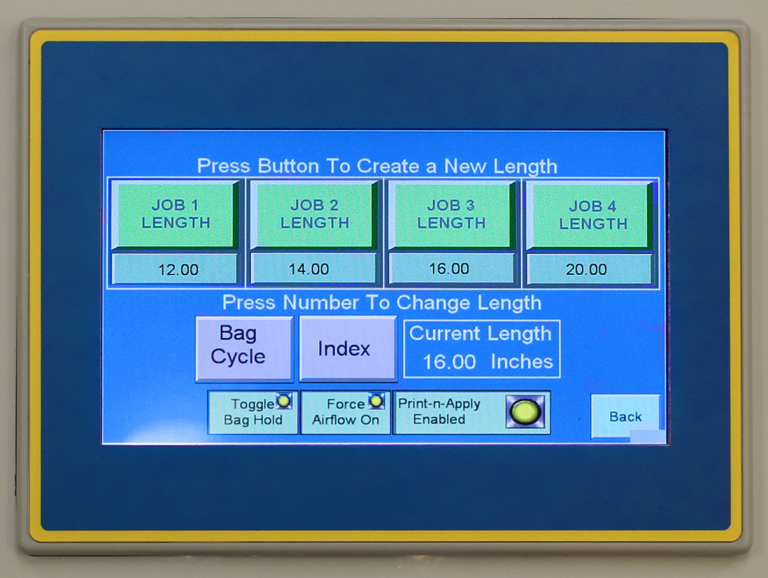

  • Wide color touchscreen is operator friendly and has clear readable prompts and alarms
  • Two foot long outfeed conveyor for conveying product to the next step in the fulfillment process
  • Large diameter rolls and variable bag length enables machine to package products of practically any length
  • Integrated label printer applicator ties into warehouse management system to print the shipping label directly on the outside of the bag

Set-Up Benefits

  • Store different bag length settings for quick job set-up
  • Stand with casters and a compact design provides portability
  • Quick roll change feature to facilitate easy and fast changeover

Maintenance Benefits

  • Designed to minimize preventative maintenance costs by using off-the-shelf components
  • Self-diagnostics ensure quick problem solving
  • Warranty extendable up to 5 years when exclusively using Rollbag brand material and labels

Safety Benefits

  • Low pressure closing with obstruction detection system for improved operator safety
  • Safety light curtains for added safety during loading (optional)
  • Designed to meet CE requirements

Mode lMagnum Horizontal Mail Order Fulfillment Bagger Speed (bags)up to 40/min Speed (poly tubing)up to 20/min Feed rate up to 40?/sec Bag width2 – 13? (15? optional)Bag length2-96?Bag thickness1 – 5 milElectrical120V @ 20AAir80 psi @ 5 CFM Origin Made in USAWarranty1 year, extendable up to 5 years
