APM TCBSDM 3/8

302383523jpg Tcbsdm Crank 500wide

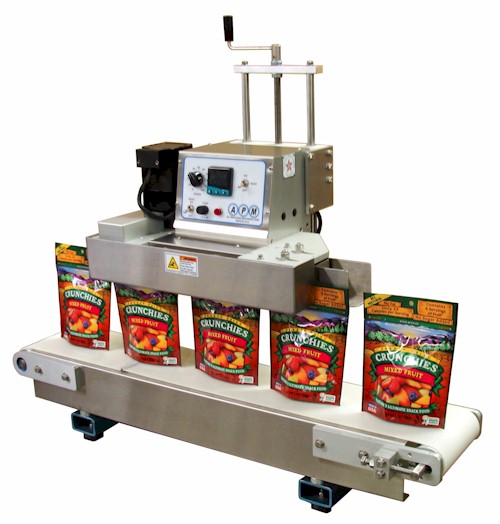

 Tabletop conveyorized vertical rotary sealing system

      Now includes crank handle head height adjustment!!Features:

  • Newly designed from APM is our model TCBSDM-3/8 Tabletop Conveyorized Band Sealing system with synchronized lower support conveyor and crank handle head height adjustment.
  • Materials: PE, PP, Kraft/PE, Tyvek, Polymylar, Foil/PE, Cryovac, Coextrusions, Polylaminates, Military Specs, Nylon
  • 3/8" wide hermetic seal
  • Synchronized lower support conveyor makes pouch loading easy. Speeds up to 35 feet per minute with synchronous motor drive package
  • Digital precise temperature controller maintains heat up to 450 degrees +/2 degrees
  • Chrome plated sealing assembly followed by cooling section
  • No compressed air required, 110 V , 1 phase, 60 cycle
  • Stainless Steel shafting throughout
  • Smokeless and Odorless sealing
  • Unit designed with all stainless steel covers
  • Embossing coder available as an option


  • Newly designed from APM is our model TCBSDM-3/8 Tabletop Conveyorized Band Sealing system with synchronized lower support conveyor and crank handle head height adjustment.
  • Materials: PE, PP, Kraft/PE, Tyvek, Polymylar, Foil/PE, Cryovac, Coextrusions, Polylaminates, Military Specs, Nylon
  • 3/8" wide hermetic seal
  • Synchronized lower support conveyor makes pouch loading easy. Speeds up to 35 feet per minute with synchronous motor drive package
  • Digital precise temperature controller maintains heat up to 450 degrees +/2 degrees
  • Chrome plated sealing assembly followed by cooling section
  • No compressed air required, 110 V , 1 phase, 60 cycle
  • Stainless Steel shafting throughout
  • Smokeless and Odorless sealing
  • Unit designed with all stainless steel covers
  • Embossing coder available as an option
